NCERT Notes for Class 11 Chapter 9 Hydrocarbons

In this article, we talk about alkanes, alkenes, alkynes, and aromatic compounds, from their structures, nomenclature and reactions to their industrial uses and environmental impact.

Discussing the Main Terms Related to Hydrocarbon

Hydrocarbon

Compounds formed with the help of carbon and hydrogen are known as Hydrocarbons.

a)Saturated hydrocarbon:

Saturated hydrocarbons are those that contain a single bond in between two carbon atoms. Example: methane

b)Unsaturated hydrocarbon:

The hydrocarbon with double or triple bonds other than single bond is so called unsaturated hydrocarbon. Example: ethyne, ethene.

c)Aromatic Hydrocarbon:

The aromatic hydrocarbon is defined as compounds of benzene and their derivatives.

Example: Benzene and Aniline.

d)Alicyclic compounds:

The cyclic ring only consisting of carbon atoms is called alicyclic compounds.

Example:

e)Heterocyclic compounds:

The cyclic ring of such a compound is composed of carbon as well as atoms other than carbon.

Example:

Classification

Hydrocarbons are classified into three different categories, depending on the type of carbon-carbon bond present in them, viz., saturated, unsaturated and aromatic hydrocarbons. Alkanes are saturated hydrocarbons, alkenes and alkynes are unsaturated hydrocarbons. Aromatic hydrocarbons are a special type of cyclic compound.

Alkanes

The simplest form of organic compound that are made up of carbon and hydrogen. Carbon atoms are made up of single bond; covalent. As the chain of carbon is composed of single bonds only so they are fully saturated hydrocarbons. This class of alkanes are chemically inert in nature, so they are called paraffins.

Nomenclature

We proceed further with steps to understand the IUPAC nomenclature or how to write the structural formula of different hydrocarbons.

Step1. First to identify the longest chain among all the carbon.

Step2. In the second step, give the number to the selected chain. Try to give the number from left to right. As this should also be kept in mind that the lowest numbers attached to the alkyl group come first.

Step3. Identifying the alkyl group attached to the main chain.

Step4. Finally writing the IUPAC names.

Based upon the number of carbon atoms attached to a carbon atom, the carbon atom is termed as primary (1°), secondary (2°), tertiary (3°) or quaternary (4°).

Sawhorse Projections

In this projection, the molecule is viewed along the C–C bond axis. The front carbon is shown at the lower end and the rear carbon at the upper end of a slightly tilted line. Each carbon has three bonds drawn at 120° angles to represent attached hydrogen atoms.

Newman Projections

In this projection, the molecule is viewed head-on along the C–C bond. The front carbon is shown as a point with three bonds at 120°, and the rear carbon as a circle with three attached hydrogen atoms also spaced at 120°.

Relative stability of conformations

The two forms, decide the stability and energy of the molecule. When the alkane(ethane) is present in a staggered form, maximum repulsion occurs, which creates minimum energy and maximum stability. Whereas in the eclipsed form of ethane, the stability reduces as the electrons of the carbon cloud and hydrogen clouds come closer, and it possesses more energy than the staggered form, thus the stability in this form reduces.

Preparations

1. From unsaturated hydrocarbons:

Dihydrogen gas adds to alkenes and alkynes in the presence of finely divided catalysts like
platinum, palladium or nickel to form alkanes. This process is called hydrogenation.

2. From alkyl halides:

(i) Alkyl halides (except fluorides) on reduction with zinc and dilute hydrochloric acid give alkanes.

$\mathrm{CH}-\mathrm{Cl}+{\mathrm{H}}_2\stackrel{\mathrm{Zn},{\mathrm{H}}^{+}}{\to }{\mathrm{CH}}_4+\mathrm{HCl}$

(ii) Alkyl halides, on treatment with sodium metal in dry ethereal (free from moisture) solution, give higher alkanes. This reaction is known as the Wurtz reaction.

$\begin{array}{ll}{\mathrm{C}}_2{\mathrm{H}}_5\mathrm{Br}+2\mathrm{Na}+{\mathrm{BrC}}_2{\mathrm{H}}_5\stackrel{\text{ dry ether }}{\to }& {\mathrm{C}}_2{\mathrm{H}}_5-{\mathrm{C}}_2{\mathrm{H}}_5\\ \text{ Bromoethane }& \text{ n-Butane }\end{array}$

3. From carboxylic acids

(i) When a carboxylic acid is heated with soda lime (a mixture of sodium hydroxide and calcium oxide), it undergoes decarboxylation, that is, carbon dioxide is eliminated. As a result, an alkane is formed that contains one carbon atom less than the original carboxylic acid.

${\mathrm{CH}}_3{\mathrm{COO}}^{-}{\mathrm{Na}}^{+}+\mathrm{NaOH}\underset{\mathrm{\Delta }}{\overset{\mathrm{CaO}}{\to }}{\mathrm{CH}}_4+{\mathrm{Na}}_2{\mathrm{CO}}_3$

Sodium ethanoate

(ii) Kolbe's electrolytic method: In Kolbe’s electrolytic method, aqueous sodium or potassium salt of a carboxylic acid is electrolysed. At the anode, decarboxylation occurs, and the resulting radicals dimerise to form an alkane with an even number of carbon atoms.

Properties

Physical Properties

Alkanes are non-polar due to covalent C-C and C-H bonds and a small electronegativity difference between carbon and hydrogen. They exhibit weak van der Waals forces, making:

• ${\mathrm{C}}_1-{\mathrm{C}}_4$ gases,
• ${\mathrm{C}}_5-{\mathrm{C}}_{17}$ liquids,
• ${\mathrm{C}}_{18}$ and above solids at 298 K .

They are insoluble in water but dissolve in non-polar solvents like petrol. Grease, also non-polar, is cleaned using petrol-illustrating the rule "like dissolves like."

Boiling points increase with molecular size due to stronger van der Waals forces. Branching lowers boiling points as it reduces surface area and intermolecular attraction.
E.g., pentane > 2-methylbutane > 2,2-dimethylpropane.

Chemical Properties

Although alkanes are inert towards acids, bases, oxidising and reducing agents but give following reactions:

1. Halogenation

${\mathrm{CH}}_2+\mathrm{Cl}\stackrel{h\nu }{\to }\underset{\text{ Chloromethane }}{{\mathrm{CH}}_3\mathrm{Cl}}+\mathrm{HCl}$

2. Combustion

${\mathrm{C}}_{\mathrm{n}}{\mathrm{H}}_{2\mathrm{n}+2}+\left(\frac{3\mathrm{n}+1}{2}\right){\mathrm{O}}_2\to {\mathrm{nCO}}_2+(\mathrm{n}+1){\mathrm{H}}_2\mathrm{O}$

$\begin{array}{rl}{\mathrm{CH}}_4(\mathrm{g})+2{\mathrm{O}}_2(\mathrm{g})\to & {\mathrm{CO}}_2(\mathrm{g})+2{\mathrm{H}}_2\mathrm{O}(1);\\ & {\mathrm{H}}^{\mathrm{e}}-890\mathrm{kJ}{\mathrm{mol}}^{-1}\end{array}$

Sometimes, during incomplete combustion, carbon black is formed.

${\mathrm{CH}}_4(\mathrm{g})+{\mathrm{O}}_2(\mathrm{g})\underset{\text{ combustion }}{\overset{\text{ incomplete }}{\to }}\mathrm{C}(\mathrm{s})+2{\mathrm{H}}_2\mathrm{O}(1)$

3. Controlled Oxidation

$\begin{array}{r}{\mathrm{CH}}_4+{\mathrm{O}}_2\underset{\mathrm{\Delta }}{\overset{{\mathrm{Mo}}_2{\mathrm{O}}_3}{\to }}\mathrm{HCHO}+{\mathrm{H}}_2\mathrm{O}\\ \mathrm{\Delta }\end{array}$

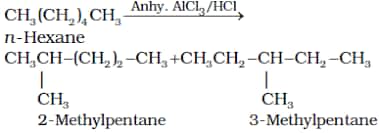

4. Isomerisation

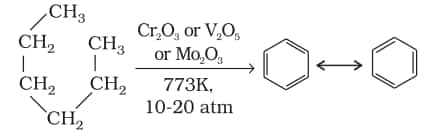

5. Aromatisation

6. Reaction with steam

${\mathrm{CH}}_4+{\mathrm{H}}_2\mathrm{O}\underset{\mathrm{\Delta }}{\overset{\mathrm{Ni}}{\to }}\mathrm{CO}+3{\mathrm{H}}_2$

7. Pyrolysis

${\mathrm{C}}_{12}{\mathrm{H}}_{26}\underset{973\mathrm{K}}{\overset{\mathrm{Pt}/\mathrm{Pd}/\mathrm{Ni}}{\to }}{\mathrm{C}}_7{\mathrm{H}}_{16}+{\mathrm{C}}_5{\mathrm{H}}_{10}+$ Other Products

Alkenes

The carbon that contains a double bond is an alkene with the general formula C_nH_2n.

Points to remember while writing the formula for alkenes:

1. Two bonds are present here in alkenes in one is the sigma bond and the other is a pi bond.

2. The availability of a number of electrons in alkenes is higher, so they are more reactive than alkanes.

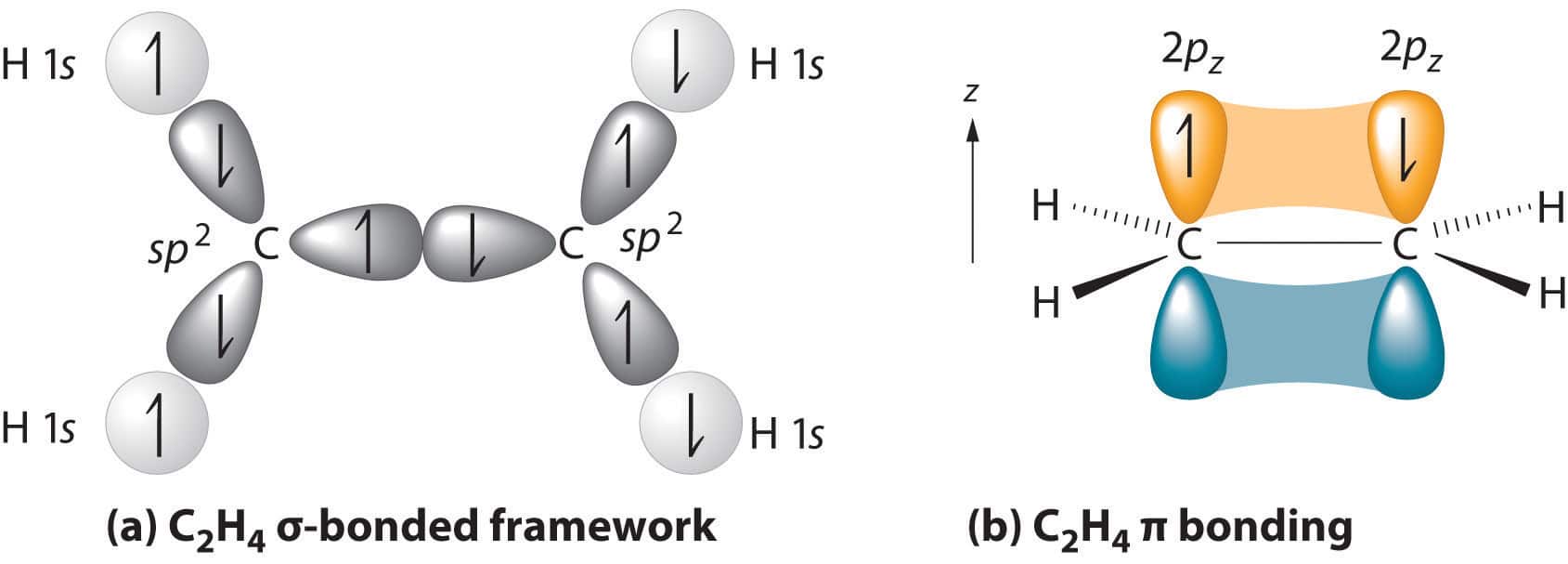

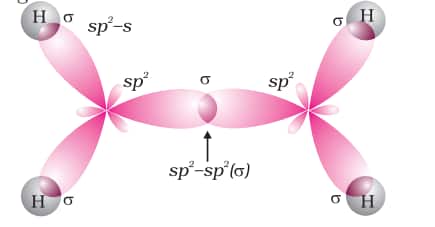

Orbital diagrams of the ethene molecule are shown in the figure below.

Nomenclature for alkenes

For writing the names of alkenes the same steps should be followed up which we studied in the earlier sections of nomenclature, where the parent or main chain is the longest one and indication of number started from one end.

If in case in one chain two or more double bonds are present than diene suffix should be used for it.

Isomerism

Basically, we go through different types of isomerism, some of which are listed below.

1. Structural Isomerism:

2. Geometrical Isomerism:

Preparations

1. From Alkynes

$\begin{array}{l}\mathrm{CH}\equiv \mathrm{CH}+{\mathrm{H}}_2\stackrel{\mathrm{Pd}/\mathrm{C}}{\to }{\mathrm{CH}}_2={\mathrm{CH}}_2\\ \text{ Ethyne }& \text{ Ethene }\end{array}$

${\mathrm{CH}}_3-\mathrm{C}\equiv \mathrm{CH}+{\mathrm{H}}_2\stackrel{\mathrm{Pd}/\mathrm{C}}{\to }{\mathrm{CH}}_3-\mathrm{CH}={\mathrm{CH}}_2$

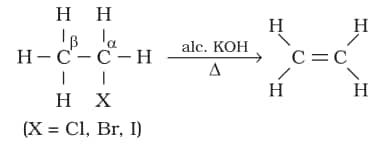

2. From alkyl halides

3. From vicinal dihalides

${\mathrm{CH}}_2\mathrm{Br}-{\mathrm{CH}}_2\mathrm{Br}+\mathrm{Zn}⟶{\mathrm{CH}}_2={\mathrm{CH}}_2+{\mathrm{ZnBr}}_2$

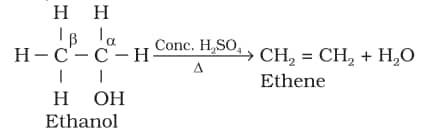

4. From alcohols by acidic dehydration:

Properties

Physical Properties

Alkenes are similar to alkanes in physical properties but differ in isomerism and polarity. The first three are gases, the next fourteen are liquids, and higher ones are solids. They are colourless, generally odourless, insoluble in water, but soluble in non-polar solvents. Boiling points increase regularly with molecular size, and straight-chain alkenes have higher boiling points than their branched isomers.

Chemical Properties

Alkenes are a rich source of loosely held pi (π) electrons, due to which they show addition reactions in which the electrophiles add on to the carbon-carbon double bond to form the addition products.

1. Addition of dihydrogen: Alkenes add up one molecule of dihydrogen gas in the presence of finely divided nickel, palladium or platinum to form alkanes.

2. Addition of halogens:

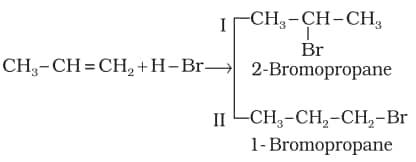

3. Addition of hydrogen halides: The addition of halides to unsymmetrical alkenes follows Markovnikov's rule. The rule states that the negative part of the addendum (adding molecule) gets attached to that carbon atom which possesses the lesser number of hydrogen atoms. Thus, according to this rule, product I, i.e., 2-bromopropane, is expected.

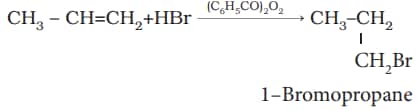

In the presence of peroxide, the addition of HBr to unsymmetrical alkenes like propene takes place contrary to the Markovnikov rule. This happens only with HBr but not with HCl and HI. This reaction is known as the peroxide or Kharash effect, or an addition reaction contrary to the Markovnikov rule.

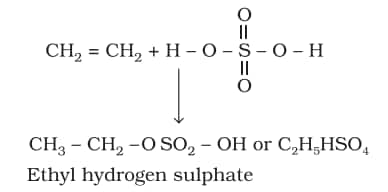

4. Addition of sulphuric acid:

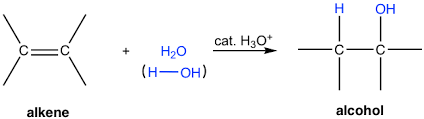

5. Addition of water:

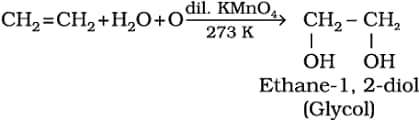

6. Oxidation:

Decolourisation of KMnO₄ solution is used as a test for unsaturation.

7. Ozonolysis:

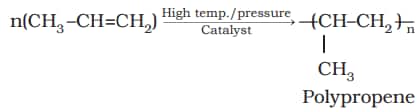

8. Polymerisation:

Alkynes

Alkynes are the chain of carbon having triple bonds with the general formulaCnH_2n-2.

An important member of the alkyne group of hydrocarbons is acetylene.

Points to remember while writing the formula for alkenes:

1. In this triple bond two of them are pi bonds and one is sigma bond.

2. Similar to alkenes, the pi electrons are found more, so they will go in addition reaction.

Each carbon has two unhybridised p orbitals which are perpendicular to each other as well as to the
plane of the C-C sigma bond. The 2p orbitals of one carbon atom are parallel to the 2p orbitals of the other carbon atom, which undergo lateral or sideways overlapping to form two pi (π) bonds between two carbon atoms.

Nomenclature for Alkynes

For writing the names of alkenes the same steps should be followed up which we studied in the earlier sections of nomenclature, where the parent or main chain is the longest one and indication of number started from one end.

While writing the names of alkyne hydrocarbon we use suffix as yne and first numbering the carbon which is attached to triple bond.

Preparation

1. From calcium carbide: By treating calcium carbide with water formation of ethyne can be possible.

${\mathrm{CaCO}}_3\stackrel{\mathrm{\Delta }}{\to }\mathrm{CaO}+{\mathrm{O}}_2$

${\mathrm{CaC}}_2+2{\mathrm{H}}_2\mathrm{O}⟶\mathrm{Ca}(\mathrm{OH}{)}_2+{\mathrm{C}}_2{\mathrm{H}}_2$

2. From vicinal dihalides: Dehydrohalogenation occur alcoholic potassium

Properties

Physical Properties

Physical properties of alkynes follow the same trend of alkenes and alkanes. First three members are gases, the next eight are liquids and the higher ones are solids. All alkynes are colourless. Ethyene has characteristic odour. Other members are odourless. Alkynes are weakly polar in nature. They are lighter than water and immiscible with water but soluble in organic solvents like ethers, carbon tetrachloride and benzene. Their melting point, boiling point and density increase with increase in molar mass.

Chemical Properties

A. Acidic character of alkyne:

$\begin{array}{rl}\mathrm{HC}\equiv \mathrm{CH}+\mathrm{Na}\to & \mathrm{HC}\equiv {\mathrm{C}}^{-}{\mathrm{Na}}^{+}+1/2{\mathrm{H}}_2\\ & \text{ Monosodium }\\ & \text{ ethynide }\end{array}$

B. Addition reactions:

The addition product formed depends upon stability of vinylic cation. Addition in unsymmetrical alkynes takes place according to Markovnikov rule.

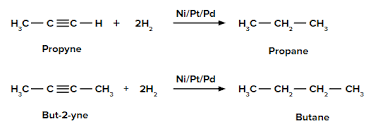

(i) Addition of dihydrogen:

$\mathrm{HC}\equiv \mathrm{CH}+{\mathrm{H}}_2\stackrel{\mathrm{Pt}/\mathrm{Pd}/\mathrm{Ni}}{\to }[{\mathrm{H}}_2\mathrm{C}={\mathrm{CH}}_2]\stackrel{{\mathrm{H}}_2}{\to }{\mathrm{CH}}_3-{\mathrm{CH}}_3$

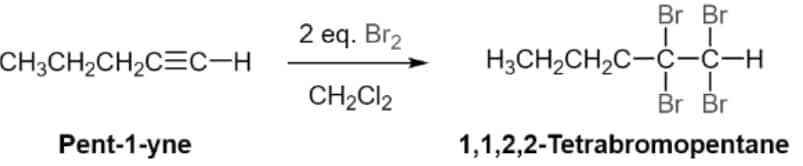

(ii) Addition of halogens:

(iii) Addition of hydrogen halides:

(iv) Addition of water:

Aromatic Hydrocarbons

The important feature of aromatic hydrocarbon is that most of the compounds containing the benzene ring and are also called arenes. The compounds having benzene rings are called benzenoids and those who have to benzene ring in their structure are termed as non-benzenoids.

Above mentioned are the examples of Hydrocarbon.

Nomenclature of Aromatic compounds

The common names according to IUPAC are accepted for naming the benzene and its homologous.

Structure of benzene:

The molecular formula of benzene is C₆H₆, and are highly unsaturated compound.

According to Kekule’s , he had given benzene structure in the year1865, in that he showed single and double bonds are present on alternate positions in the ring.

He also gave that the benzene ring would present in two forms.

Failures of Kekule’s benzene ring:

He wont able to explain how the stability of benzene ring can be achieved and also why the substitution reactions are preferred than addition reactions.

Resonance structure:

Resonance is defined as the where we can make two or more structures for the same compound and the atoms in that are also identical such structure is termed as Resonance structure.

Below showing you the resonance structure of benzene.

Orbital structure:

S-orbitals of hydrogen atom in Benzene ring form sigma bonds with carbon in condition of overlapping of hybrid orbitals.

Important points to remember:

• Benzene is found as planar in structure and this can be detected by the technique called X-ray diffractions.

• The bond length of carbon-carbon (139) which is intermediated between C-C of bond length(133pm) and C-C of bond length (154) is of same bond order. So, under normal benzene will go for addition reactions, which is the unusual behaviour of benzene.

Aromaticity

This is the property of sp² hybridized planar rings, where p orbitals allow cyclic delocalization of pi electrons.

Huckle’s Rule:

When cyclic pi electron cloud overlap, with p orbitals which contains(4n+2) pi electrons, such rule is termed as Huckle rule. Here n denotes the positive integer and 0.

Preparation of Benzene using different methods and compounds:

• It can be prepared commercially by isolating coal tar.

• There are some of the synthetic methods through which we can prepare the benzene.

• The synthetic methods are listed below:

Physical Properties

• Colourless liquid.

• Insoluble in water.

• Soluble in alcohol, ether, etc.

• Good solvent for organic and inorganic substances.

• Sooty flame with blue in colour.

Chemical Properties

• To show the chemical properties of benzene it must go through some reactions.

• Addition reaction

• Electrophilic substitution reaction

• Synthetic Methods:

Preparation

Properties

Physical Properties

Aromatic hydrocarbons are non- polar molecules and are usually colourless liquids or solids with a characteristic aroma. You are also familiar with naphthalene balls which are used in toilets and for preservation of clothes because of unique smell of the compound and the moth repellent property. Aromatic hydrocarbons are immiscible with water but are readily miscible with organic solvents. They burn with sooty flame.

Chemcial Properties

Arenes are characterised by electrophilic substitution reactions. However, under special conditions they can also undergo addition and oxidation reactions.

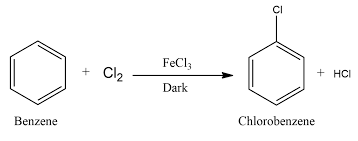

Electrophilic Substitution Reactions is as Follows

Friedel-Crafts Alkylation Reaction

Mechanism Related to Electrophilic Substitution Reaction:

Steps included in the mechanism of electrophilic substitution reactions:

Step 1: In the first step formation of electrophiles occurs.

Step 2: To form the carbonium ion electrophile needs to attack the aromatic ring.

Step 3: Loss in a number of protons gives us the substitution product.

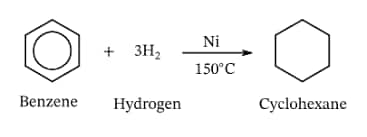

Addition reactions

Combustion Reaction

${\mathrm{C}}_x{\mathrm{H}}_y+(x+\frac{y}{4}){\mathrm{O}}_2\to x{\mathrm{CO}}_2+\frac{y}{2}{\mathrm{H}}_2\mathrm{O}$

${\mathrm{C}}_6{\mathrm{H}}_6+\frac{15}{2}{\mathrm{O}}_2\to 6{\mathrm{CO}}_2+3{\mathrm{H}}_2\mathrm{O}$

Carcinogenicity and Toxicity

Some of the polynuclear hydrocarbons contain benzene rings more than two in their chains, and when they fuse together they produce property that creates cancer.

They are formed by the incomplete combustion of tobacco, coal, etc.

Examples are as follows:

Activating Groups and Deactivating Groups

The activating groups are those who activate the benzene ring to attack with the help of an electrophile.

Deactivating groups are those who due to strong -I effect are formed which decreases the overall density and makes substitution difficult.

Meta-Directing Groups

These are the groups who helps to direct the incoming group to meta position are termed as meta-directing groups.

Hydrocarbons Previous year Question and Answer

Question: Benzene is treated with oleum to produce compound (X) which when further heated with molten sodium hydroxide followed by acidification produces compound (Y).The compound Y is treated with zinc metal to produce compound (Z).

Identify the structure of compound (Z) from the following option.

1.
2.
3.
4.

Answer:

Hence, the correct answer is option (2).

Question: Which compound would give 3-methyl-6-oxoheptanal upon ozonolysis ?

1.
2.
3.
4.

Answer:

3-methyl-6-oxoheptanal

Ozonolysis breaks the carbon–carbon double bonds in alkenes. Here, p-cymene undergoes ozonolysis, and the double bonds in the aromatic ring are cleaved. Each broken double bond is replaced by a carbonyl group (either an aldehyde or a ketone), resulting in a linear compound with aldehyde and ketone groups.

Hence, the correct answer is option (2).

Question: Arrange the following in decreasing order of their boiling points.
(A) n–butane
(B) 2–methylbutane
(C) n-pentane
(D) 2,2–dimethylpropane

Select the correct option:

1. A > B > C > D
2. B > C > D > A
3. D > C > B > A
4. C > B > D > A

Answer: The Boiling point is α molar mass & Boiling point is α surface area. It means that the boiling point will decrease on branching (surface area decreases on branching). Therefore, the highest boiling point is that of n-pentane and the lowest is of n-butane. The other two options have branches; therefore, 2-methyl butane has a higher boiling point than 2,2-dimethyl propane.

Hence, the answer is the option (4).

CBSE Class 12 Physics Chapter-wise Notes

Below is the chapter-wise list of NCERT notes:

Subject-Wise NCERT Exemplar Solutions

Below is the chapter-wise list of NCERT exemplar solutions:

Subject-Wise NCERT Solutions

Below is the subject-wise list of NCERT solutions:
