Electricity: Circuits and their Components Class 7 question answers is available to download so that you can prepare your exam easily and effectively. These Electricity: Circuits and their Components NCERT Solutions give step-by-step solution to all the questions in the textbook, which include essential concepts such as electric circuits, symbols, conductors, insulators, switches and practical applications of electricity. Through this free PDF, students are able to make revisions at all times whether using mobile, laptop, or tablet without needing the internet. The Electricity: Circuits and their Components Class 7 question answers are made by subject professionals according to latest NCERT syllabus which will assist students in developing clear understanding, saves time in revision and perform better in examinations.
Electricity: Circuits and their Components NCERT Solutions: Exercise Questions
Class 7 Science Chapter 3 - Electricity: Circuits and their Components question answers assist Class 7 students to learn the fundamentals of electric circuits, circuit symbols, conductors, and insulators in simple terms. These step by step solutions are also made ready according to the new NCERT syllabus so that learning becomes easy and effective. With such solutions, students will be able to revise fast, clear doubts and perform well on exams.
1. Choose the incorrect statement.
(i) A switch is the source of electric current in a circuit.
(ii) A switch helps to complete or break the circuit.
(iii) A switch helps us to use electricity as per our requirement.
(iv) When the switch is in ‘OFF’ position, there is an air gap between its terminals.
Answer:
(i): This statement is wrong; a switch does not provide electric current in a circuit. The electric current supplied to a circuit is generally provided by a battery or power source. A switch simply opens and closes the circuit and therefore controls the flow of current.
(ii): This statement is right. The job of a switch is to close (or complete) and open (or break) an electrical circuit, which then allows current to flow or stops the flow of current.
(iii): This statement is right. By using switches, we have control over when and where electricity flows, and we only have to use electric devices when we actually need to do something.
(iv): This statement is right. When the switch is in the 'OFF' position, there is a break in the electrical pathway (that break is typically filled with air, which is an insulator), and therefore current cannot flow.
2. Observe Fig. 3.16. With which material connected between the ends A and B, the lamp will not glow?
Answer:
The lamp will not glow if the material between the ends A and B is an insulator (like rubber, plastic, or wood). These materials do not allow electricity to flow through them.
3. In Fig. 3.17, if the filament of one of the lamps is broken, will the other glow? Justify your answer.
Answer:
If one lamp has a broken filament, then the other lamp will not light up, either.
- When one lamp's filament breaks, it opens a gap in the circuit.
- This gap indicates that the path for the electric current is discontinuous. When the circuit is open, the current can no longer flow through the circuit.
- Although the other lamp may be perfectly fine and operating, it will not glow because no electricity is reaching it because of the gap/disconnection.
4. A student forgot to remove the insulator covering from the connecting wires while making a circuit. If the lamp and the cell are working properly, will the lamp glow?
Answer:
The insulator stops the electric current from flowing through the wire, which is required for the lamp to glow, therefore no, it won't.
You must remove the insulation from the sections of the wire that link to the cell and the light in order for the circuit to function and the lamp to glow. The lamp will light up as a result of the power flowing through this!
5. Draw a circuit diagram for a simple torch using symbols for electric components.
Answer:

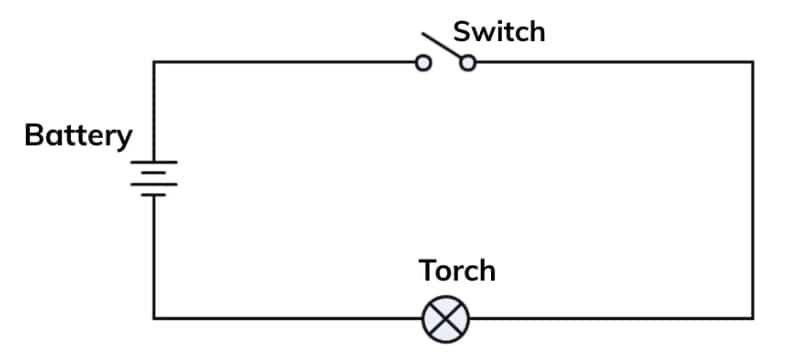

A simple torch circuit can be represented as:
This is a simple series circuit where the battery provides power, the switch controls the current, and the lamp glows when the current flows.

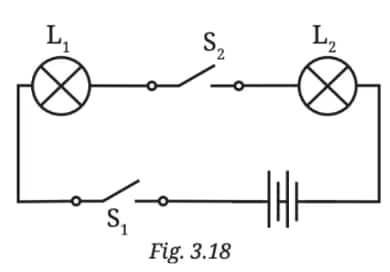

6. In Fig. 3.18:
(i) If S2 is in ‘ON’ position, S1 is in ‘OFF’ position, which lamp(s) will glow?
(ii) If S2 is in ‘OFF’ position, S1 is in ‘ON’ position, which lamp(s) will glow?
(iii) If S1 and S2 both are in ‘ON’ position, which lamp(s) will glow?
(iv) If both S1 and S2 are in ‘OFF’ position, which lamp(s) will glow?
Answer:
(i) Ans: Neither lamp will glow because both switch 1 is open.
(ii) Ans: Neither lamp will glow because both switch 2 is open.
(iii) Ans: Both Lamp 1 and Lamp 2 will glow, as both switches are closed, allowing current to flow to both lamps.
(iv) Ans: Neither lamp will glow because both switches are open, preventing current flow.
7. Vidyut has made the circuit as shown in Fig. 3.19. Even after closing the circuit, the lamp does not glow. What can be the possible reasons? List as many possible reasons as you can for this faulty operation. What will you do to find out why the lamp did not glow?
Answer:
Some possible reasons are:
- The lamp has a broken filament (if it’s an incandescent lamp).
- Loose connections or poor contact in its electrical terms.
- Battery is dead(done) or battery terminals are not placed correctly.
- The wires are not properly connected to the lamp or battery.
- The circuit has an open circuit due to a faulty switch or a broken connection in the circuit.
In order to find out why the lamp did not glow, you should:
- Inspect the lamp for a broken filament.
- Make sure everything has secure connections.
- Use a simple tester to test the battery and make sure it is working.
- The switch is in the ‘ON’ position.
- Check the wiring in order to make sure there is electrical contact.

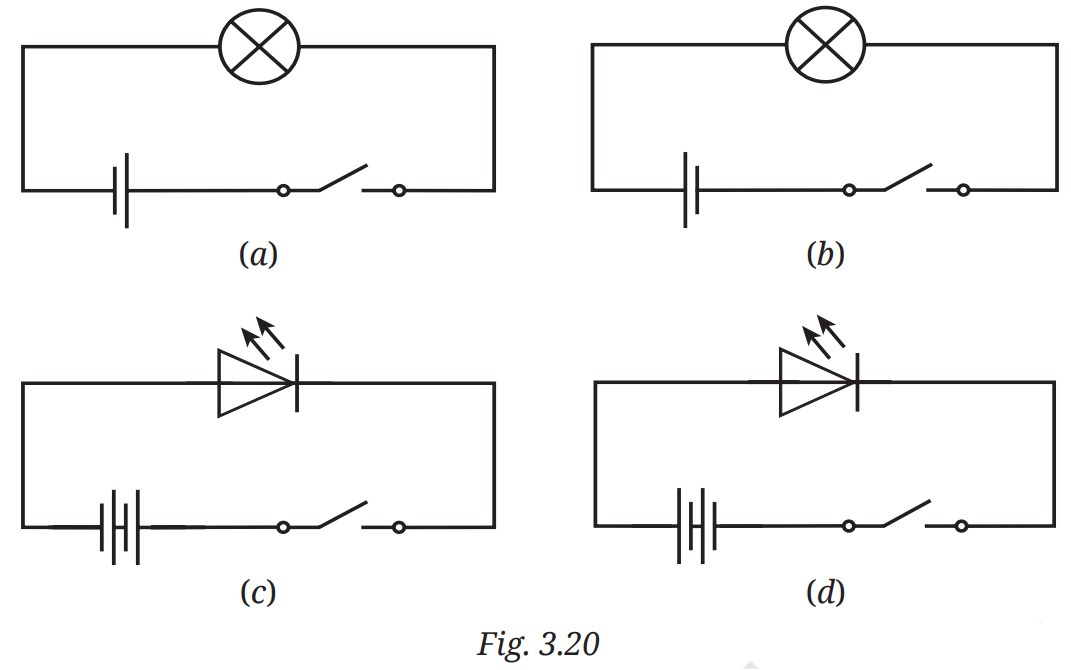

8. In Fig. 3.20, in which case(s) the lamp will not glow when the switch is closed?
Answer:
Cases (a), (b), and (d) will light up when the switch is closed but case (c) will not light up because the battery's negative terminal is connected to the LED's positive terminal, which means that it is reverse-connected. In this case, current will not flow through the LED and it will not light up.
9. Suppose the ‘+’ and ‘–’ symbols cannot be read on a battery. Suggest a method to identify the two terminals of this battery.
Answer:

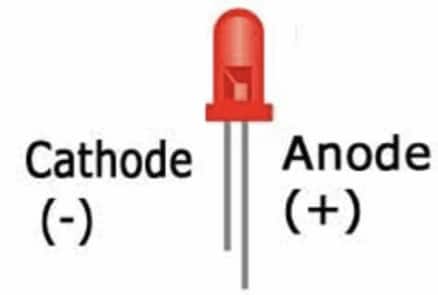

We can test the ' + ' and ' - ' of a battery by connecting it to an LED. We know that the longer wire of an LED is the positive terminal of the LED and the shorter wire of the LED is the negative terminal. After connecting the LED to the cell if the LED glows then the terminal connected to the longer side of the LED is the positive terminal of the Cell and the other side is the negative terminal of the cell.
If the LED does not glow after connecting with the cell then exchange the connection of the terminal and test again.
10. You are given six cells marked A, B, C, D, E, and F. Some of these are working and some are not. Design an activity to identify which of them are working. (i) List the items that you require. (ii) Write the procedure that you will follow. (iii) With the items, carry out the activity to identify the cells that are working.
Answer:
i.) To test which of the batteries is working, we will require a working bulb and connecting wires.
ii.) We will connect each of the batteries with the bulb using the connecting wires and check if the bulb glows or not.
iii.) First, we will connect the connecting wires to the terminals of the bulb. Then we will connect the cells one by one to the wires. The bulb will glow in some cases and in some cases it will not. The cells that are able to glow the bulb are identified as working.

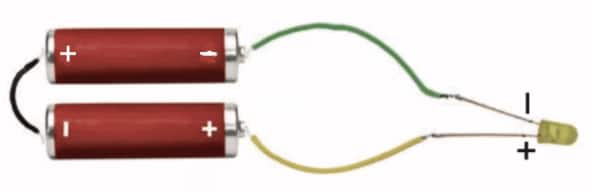

11. An LED requires two cells in series to glow. Tanya made the circuit as shown in Fig. 3.21. Will the lamp glow? If not, draw the wires for correct connections.
Answer:
No, the LED will not glow if the cells are not connected in the correct polarity. To make the LED glow, the positive terminal of the battery should be connected to the positive terminal of the LED (longer wire), and the negative terminal of the battery should be connected to the negative terminal of the LED (shorter wire).
Corrected connection:
Exploratory Projects
1. Suppose that due to some problem, the power supply is disrupted in your area for two days. List out which actions from your daily life you would not be able to do.
Answer:
If there is no electricity in my area for two days, many of my daily activities will be affected. Some things I won’t be able to do are:
Switch on lights – I will not be able to study or see things properly at night.
Use fans or AC – It will be very hot and uncomfortable, especially during summer.
Keep food fresh – The fridge will not work, so milk, fruits, and vegetables may get spoiled.
Charge my mobile phone or tablet – I won’t be able to call anyone or attend online classes.
Watch TV or use a computer – I will miss my favorite shows and won’t be able to use the internet.
Cook using electric appliances – I cannot use the microwave, toaster, or induction stove.
Pump water – If the water pump doesn't work, we may run out of water.
Iron clothes – My school uniform may remain wrinkled.

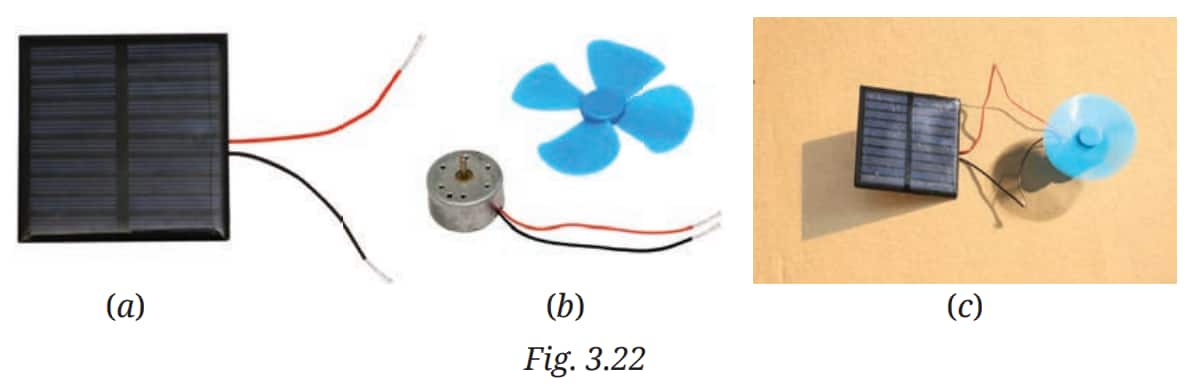

2. Using a solar panel (Fig. 3.22a) as a source of electrical energy, make a circuit to run a toy fan (Fig. 3.22b) as shown in Fig. 3.22c.
Answer:
3. Visit an electrical items shop. With the help of the shopkeeper, identify the various types of cells available. For each cell, also find out which device(s) it is used for. Prepare a report.
Answer:
Visit Date: [Write a date]
Place: [Name of shop]
Accompanied by: Shopkeeper [Mr./Ms. Name]
Introduction:

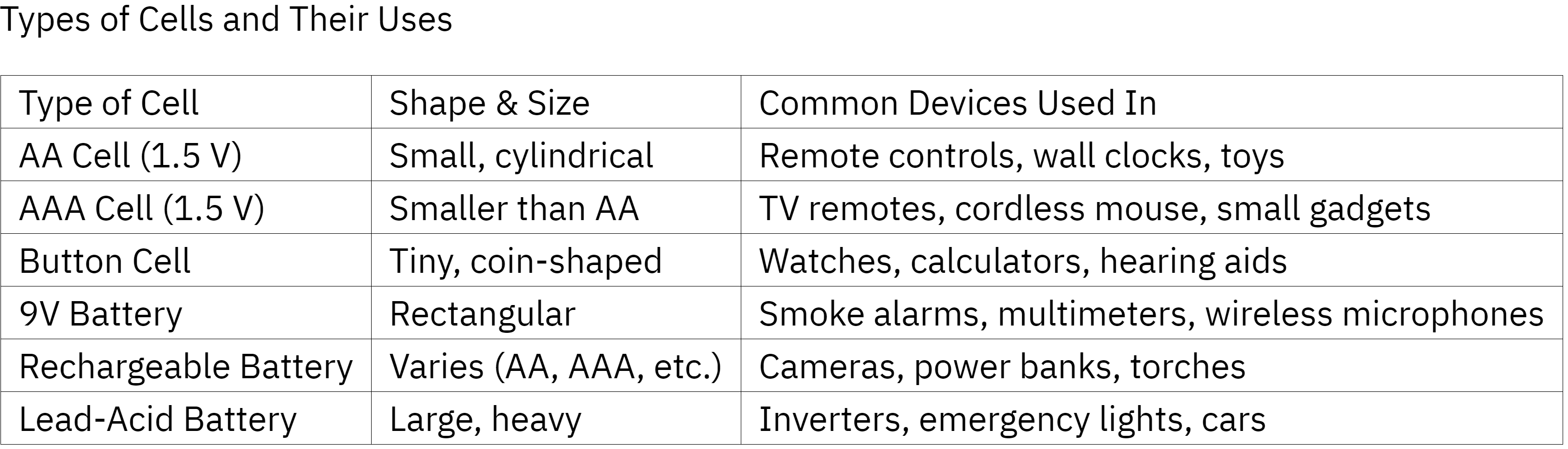

I visited a local electrical supplies store to learn about the types of cells (batteries) that are used in everyday things. The shopkeeper assisted in my questioning of how I could tell the difference of the types of cells currently available and insisted in noting the types of cells and the appliances they are used for.
Conclusion:
This visit made me aware of and understand the different types of cells and their importance in the operation of a range of electrical appliances. Some are single-use (disposable) while some can be recharged and reused - which is better for our environment!
3. Prepare a list of objects in your home under three categories:
(i) Objects which are electrical insulators only
(ii) Objects which are electrical conductors only
(iii) Objects which are made of both, whose some parts are insulators and some electrical conductors
Answer:
(i) Objects that only act as Electrical Insulators:
These objects do not conduct electricity through them:
- Plastic bucket
- Rubber gloves
- Wooden chair
- Glass cup
- Woolen blanket
- Plastic comb
- Thermocol plate
(ii) Objects that only act as Electrical Conductors:
These objects conduct electricity through them easily:
- Copper wires
- Iron nails
- Steel spoon
- Aluminium foil
- Coins
- Metal taps
- Keys
(iii) Objects that contain both Conductors and Insulators:
These objects are combination of both ( conductor and insulator parts)
- Electric iron (metal base - conductor, plastic handle - insulator)
- Mixer grinder (metal blades - conductor, plastic body - insulator)
- Electric kettle (metal coil - conductor, plastic handle - insulator)
- Extension board (internal wires - conductor, outer casing - insulator)
- Mobile charger (metal pins - conductor, plastic body - insulator)
Approach to Solve Questions of Class 7 Science Chapter 3 – Electricity: Circuits and Their Components
Class 7 Science Chapter 3 presents the students with the intriguing world of electric current and circuits, containing the explanation of how the electric current is flowing, why some conductors and insulators are needed, and how to compose the circuit diagram with the help of the standard symbols. Students are advised to learn the concepts instead of memorizing them to effectively answer the questions in this chapter. To learn to master this chapter, the following method will assist:
-
Read and Understand Chapter: Read the chapter thoroughly in order to know the electric current, open and closed circuit, switches, and components such as bulbs, wires and cells.
-
Identify Key Concepts: Focus on symbols of circuit components, the working of conductors and insulators, and the difference between series and parallel connections.
-
Differentiate Materials: Determine the group of conductors (such as copper, aluminum, iron) and the group of insulators (such as plastic, rubber, wood).
-
Observe Real-Life Applications: Relate concepts to everyday experiences - e.g., electric bulbs, fans, fuses, and switches found at home.
-
Revise Important Terms: Study concepts such as circuit diagram, filament, battery, switch, fuse, and conductor to compose proper answers.
-
Practice Question-Answer Solutions: Solve the NCERT problems so that you know how to frame answers in simple and clear language.
-
Use Diagrams Where Needed: Make your answers more effective and exam-ready by practicing how to draw standardized circuit diagrams using standard symbols.
Electricity: Circuits and their Components Class 7 Science Chapter 3: Topics
Electricity: Circuits and Their Components in Class 7 Science teaches students the concepts of electric circuits such as the flow of electricity through a circuit and the parts that it requires to complete a circuit. Subsequently, this chapter develops background knowledge about electricity and its practical applications in day-to-day life.
3.1 A Torchlight
3.2 A Simple Electrical Circuit
3.2.1 Electric cell
3.2.2 Battery
3.2.3 Electric lamp
3.2.4 Making an electric lamp glow using an electric cell or battery
3.2.5 An electrical circuit
3.2.6 Electric switch
3.3 Circuit Diagrams
3.4 Electrical Conductors and Insulators
Benefits of NCERT Solutions for Class 7 Science Curiosity Chapter 3
CElectricity: Circuits and their Components Class 7 question answers give students a clear and systematic approach to learn about the fundamentals of electricity. These solutions present concepts such as open and closed circuits, conductors, insulators, switches, and circuit symbols in the simplistic way. They are very useful in the preparation of exams, homework and using the concept of science in real life activities so that the learners have solid background in study of electricity.
1. Detailed Step-by-Step Solutions
All the exercises questions are responded to with clear understanding, so that the students can trace the right reasoning to draw the circuit diagrams and solve the problems on electric current, switches, bulbs, and cells.
2. Concept Clarity
Using simple language and using familiar examples, solutions explain scientific terminologies- such as conductors, insulators, open/closed circuits, series and parallel, etc.- and concepts are easier to grasp on.
3. Boosts Exam Preparation
The responses are according to the current NCERT examination pattern and thus the student is accustomed to the format and style required to clear the tests and exams.
4. Improves Problem-Solving Abilities
The high-order thinking questions and reasoning are answered adequately with explanations and the reasoning improves analysis competency, powers of observation as well as drawing ability in the students.
5. Saves Time on Revision
Access to all solutions would be quick, enabling students to self-check answers immediately, a larger number of chapters to be covered as well as by a smaller number of times in a given period and also it helps build self confidence.
6. Supports Practical Activities
Solutions to activity-based questions (e.g. making of a simple circuit or testing of materials to determine whether they are conductors or not) provide step by step procedures, expected observations, and desired answers.
7. Creates a solid base of upper classes
Learning and grasping the elementary basics of electricity using NCERT solutions equips the students to advance to more complicated physics in higher classes.
NCERT Solutions for Class 7 Science Chapter Wise
The NCERT Solutions of Class 7 Science give step by step solutions of all the chapters of the new NCERT textbook. These solutions assist students to develop a good foundation, to plan well before exams, and to comprehend concepts easily. It is easy to revise or access any topic with the chapter-wise links, making it easier to learn and more organised.
NCERT Solutions for Class 7 Subject Wise
Also Check NCERT Books and NCERT Syllabus here
Frequently Asked Questions (FAQs)
Q: What makes electricity so essential in our day to day life?
A:
Lights, fans, TVs, refrigerators and lots of appliances are powered by electricity, thus making our life more comfortable.
Q: What causes a bulb to glow?
A:
The filament of a bulb heats and emits light when the electric current is applied through the bulb in a closed circuit through which the electric current flows.
Q: Why are the electric wires wrapped in plastic?
A:
Plastic is insulating material, which barricades electric shocks by not allowing supply of current out of the wire.
Q: Why should we not play with electricity switches and pins?
A:
The reason is due to the fact that electricity may lead to electric shocks, burns or even fires if electrical devices are handled carelessly.
Q: What is the role of a switch in an electric circuit?
A:
A switch is used to open or close an electric circuit. It controls the flow of electricity. When the switch is closed (ON), the circuit is complete, and current flows; when it's open (OFF), the current stops.
