NCERT Solution for Class 6 Science Chapter 4 - Exploring Magnets

NCERT Solution for Class 6 Science Chapter 4 - Exploring Magnets

Vishal kumarUpdated on 07 Aug 2025, 11:52 AM IST

Have you ever thought as to why some of the objects become attracted with a magnet or not attracted to a magnet? NCERT Class 6 Science Chapter 4 - Exploring Magnets has been made in such a way that it arouses interest and makes studying about magnets fun and free of complications. This chapter will get you started on learning about the wonderful world of magnetism where you will discover how to make a distinction between magnetic and non-magnetic materials, why a magnet has two poles and how magnets would attract or repel each other, depending upon the way they are held.

This Story also Contains

  1. NCERT Solutions For Class 6 Science: Exploring Magnets: Exercise Question and Answer
  2. NCERT Solutions For Class 6 Science: Exploring Magnets: Learning Further
  3. Exploring Magnets Class 6 Chapter 4 - Topics
  4. Approach to solve the Class 6 Science Chapter 4 Exploring magnets
  5. NCERT Solutions for Class 6 Science Chapter Wise
NCERT Solution for Class 6 Science Chapter 4 - Exploring Magnets
NCERT Solutions For Class 6 Science Exploring Magnets

Students also get to learn what makes magnets, why they lose their magnetism, and how magnets are utilized in our everyday activities-like refrigerator doors, electric bells, compasses and magnetic toys. The NCERT Solutions of Class 6 Science Chapter 4 contains step wise clear answers to all the textbook questions which builds a good foundation of the subject science to the students. Exploring magnets Class 6 NCERT solutions are very helpful in revision, homework and revisions before school exams, that is why they form a very vital part of studying by any Class 6 student.

NCERT Solutions For Class 6 Science: Exploring Magnets: Exercise Question and Answer

Question 1.1: Fill in the blanks.

Unlike poles of two magnets ………… each other, whereas like poles each other.

Answer: Attract
Unlike pole attract each other and like pole repel each other.

Question 1.2: Fill in the blanks

The materials that are attracted towards a magnet are called ……….

Answer: Magnetic materials

Question 1.3: Fill in the blanks

The needle of a magnetic compass rests along the ……….. direction.

Answer: North-South Direction

Question 1.4: Fill in the blanks

A magnet always has ………. Poles.

Answer: Two

Question 2.1: State whether the following statements are True (T) or False (F).

A magnet can be broken into pieces to obtain a single pole. [ ]

Answer: False

Question 2.2: State whether the following statements are True (T) or False (F).

Similar poles of a magnet repel each other. [ ]

Answer: False

Question 2.3: State whether the following statements are True (T) or False (F).

Iron filings mostly stick in the middle of a bar magnet when it is brought near them.[ ]

Answer: false

Question 2.4: State whether the following statements are True (T) or False (F).

A freely suspended bar magnet always aligns with the north-south direction.[ ]

Answer: True

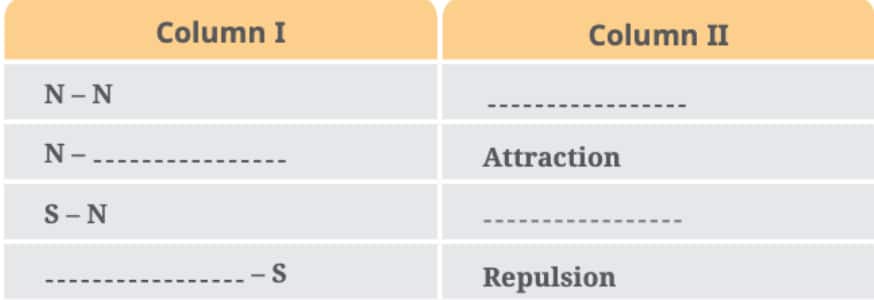

Question 3: Column I shows different positions in which one pole of a magnet is placed near that of the other. Column II indicates the resulting interaction between them for different situations. Fill in the blanks.

Answer:

Column I

Column II

N - N

Repulsion

N - S

Attraction

S - N

Attraction

S - S

Repulsion

Question 4: Atharv performed an experiment in which he took a bar magnet and rolled it over a heap of steel U-clips (Fig. 4.15). According to you, which of the options given in Table 4.3 is likely to be his observation?

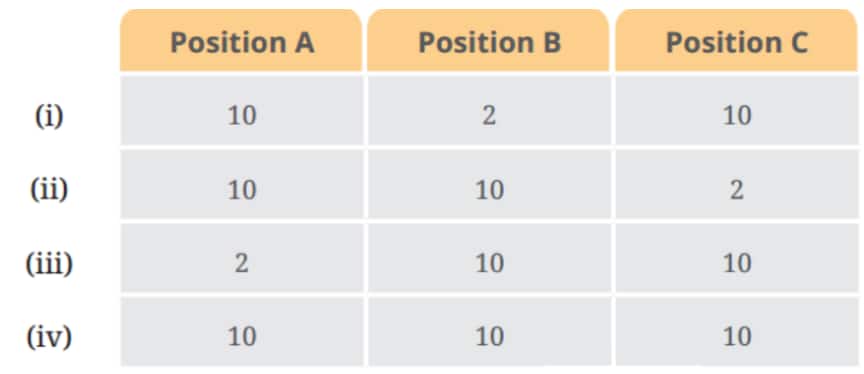

Table: Number of pins attracted by the magnet at its various positions


Answer: From the figure, it is clear that the ends of the magnet have more iron fillings attached to it. This is because the magnet's strength lies more at the ends of the magnet. Hence, option(i) is correct.

Question 5: Reshma bought three identical metal bars from the market. Out of these bars, two were magnets and one was just a piece of iron. How will she identify which two amongst the three could be magnets (without using any other material)?

Answer: Reshma can identify the magnets through the principle of repulsion. Magnets repel other magnets when like poles are brought close. The iron bar will only be attracted but won't show repulsion, helping her identify the magnets.

Question 6: You are given a magnet which does not have the poles marked. How can you find its poles with the help of another magnet which has its poles marked?

Answer: By bringing the marked magnet near the unmarked one, if the two ends attract, the unmarked magnet's pole is the opposite of the marked magnet's pole. If they repel, the poles are similar.

Question 7: A bar magnet has no markings to indicate its poles. How would you find out near which end its North pole is located without using another magnet?

Answer: Suspend the magnet freely, and it will align itself in the north-south direction. The end pointing towards the north is the North Pole, and the end pointing towards the south is the South Pole.

Question 8: If the earth is itself a magnet, can you guess the poles of the earth’s magnet by looking at the direction of the magnetic compass?

Answer:

Yes, we can guess the poles of Earth’s magnet by looking at the direction of the magnetic compass. The north-seeking end of the compass needle points towards the geographic North Pole of the Earth.

Question 9: While a mechanic was repairing a gadget using a screw driver, the steel screws kept falling down. Suggest a way to solve the problem of the mechanic on the basis of what you have learnt in this chapter.

Answer: The mechanic can magnetize the screwdriver by rubbing a magnet along its length several times. This will allow the screwdriver to hold the screws securely while working.

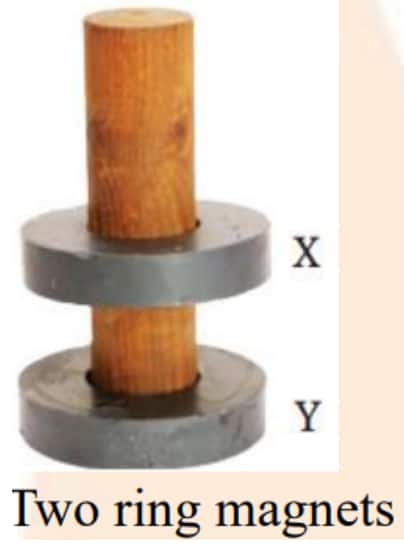

Question 10: Two ring magnets X and Y are arranged as shown in Fig. 4.16. It is observed that the magnet X does not move down further. What could be the possible reason? Suggest a way to bring the magnet X in contact with magnet Y, without pushing either of the magnets.

Answer: Magnet X must be floating because the like poles are facing each other (like poles repel each other). If we change the direction of the magnet X by rotating it the unlike poles will face each other and the magnets will come closer. Magnet X is likely repelling magnet Y because their like poles are facing each other. By rotating magnet X, so that opposite poles face each other, the magnets will attract and move closer.

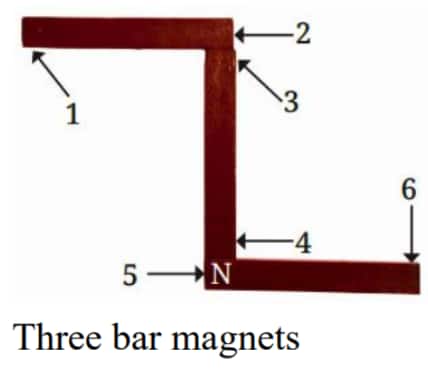

Question 11: Three magnets are arranged on a table in the form of the shape shown in Fig. 4.17. What is the polarity, N or S, at the ends 1, 2, 3, 4 and 6 of the magnets? Polarity of one end (5) is given for you.

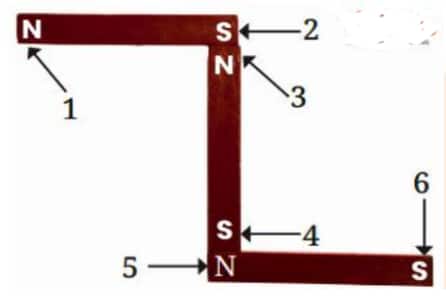

Answer:

Point

Polarity

1

N

2

S

3

N

4

S

6

S

NCERT Solutions For Class 6 Science: Exploring Magnets: Learning Further

Q1: Using 3–4 different magnets, try to lift steel pins or U-clips and check which magnet picks up the largest number of pins. Discuss with your friends why different magnets might have picked up different numbers of pins.

Answer:

Experiment Steps:

  • Gather 3-4 magnets of various size and shape (including bar magnet, ring magnet, disc magnet, and U-shaped magnet).
  • On a table, drop some piles of steel pins or U -clips.
  • Take each magnet in turn and use it to measure how many pins it can pick up at a time with the magnetic pile.
  • Repetitively determine the number and jot in your notebook.

Sample Observations Table:

Magnet TypeNumber of Pins Lifted
Bar Magnet12
U-shaped Magnet20
Disc Magnet10
Ring Magnet8

Observation points:

  1. Various magnets hold more or fewer pins due to the differences in their strengths.
  2. The power of the magnet depends on the size, material, and more so on the shape of the magnet. U-shaped magnets tend to have more powerful poles near one another, thus they can generate a more magnetic field at the opposite ends.
  3. Some of the magnets might be old and therefore unable to hold their strength so they would pick-up fewer pins.
  4. The area close to the poles of the magnet is the strongest and therefore attempt to pick the pins using those areas.

Conclusion:
The magnet that is largest, newest, or has a design that brings both poles close together (like a U-magnet) will generally pick up the most pins.

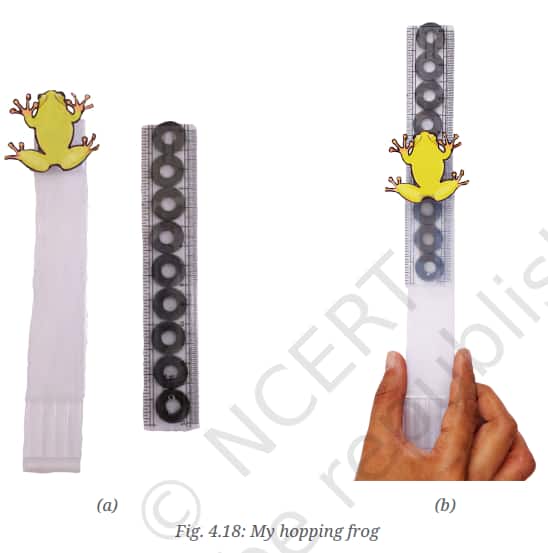

Q2: Make a toy ‘Hopping Frog’ as a combined class activity with the help of your teacher. For constructing the toy, fix ring magnets in an alternate North-South fashion along the length of a scale using glue (Fig. 4.18a). Paint a frog on paper, cut along the outline and glue a ring magnet at its base. Take a transparent, flexible plastic strip (Fig. 4.18a) of a smaller size and glue it to the ring magnet which is attached to the frog. When you slide the plastic strip (with frog) over the scale (Fig. 4.18b), you can observe the frog hopping

Answer:

Construction Steps:

  1. Stick ring magnets to a scale in an alternate North-South pattern using glue.
  2. Trace and cut the picture of a frog on paper and fix a ring magnet under the frog with glue.
  3. To the frog base (with the magnet) attach a small flexible strip of plastic.
  4. Put the frog onto the magnet scale and slide it--and when you move the strip, the frog will hop along over the magnets.

Why does the frog hop?

The magnets repel each other if like poles face, pushing the frog magnet upward a little, making it “hop.”

Q3. Find out about the Maglev Train and try to make its model.

Answer:

Maglev Trains:

  1. Maglev is short for Magnetic Levitation train.
  2. Such trains hover on the tracks with the help of strong magnets. The train is hanging above the track by means of one set of magnets, and a different set of magnets propels it.
  3. Since there is no rubbing of wheels on the track, there is practically no friction hence Maglev trains can move quite swiftly and run on the track smoothly.

Steps to make a simple maglev model at home:

  • Cut several strong bar magnets and glue them along a piece of cardboard to replicate a ”track” (like North, South, North, South).
  • Take a little plastic slab and put 2 bar magnets (magnets with both poles pointing at the track magnets) under it.
  • Put the slab back to the track it should repel and lift and slide nicely.
  • Push gently & with one smooth motion, it glides. (Note: Much strong neodymium magnets work far better!)

Q4: Try to find out why there is a need to make magnets of different shapes.

Answer:

Magnets come in various shapes as magnets are applied for various purposes:

  1. Bar magnets: Suitable for the use in the laboratory, in the compass and some general use.
  2. U-shaped/Horseshoe magnets: Two of whose poles are right next to each other and the magnetic field is stronger at the gap—great for lifting heavy loads.
  3. Disc magnets: Use in small areas, small speakers, bags and other complicated tiny gadgets.
  4. Ring magnets: Used where you need a hole in the center like on some motors.
  5. Cylindrical magnets: In use by devices needing a strong long field such as MRI machines.

Q6: Collect information related to the use of magnets in the field of medicine.

Answer:

Magnets play an essential role in medicine, due to a number of reasons:

  1. MRI (Magnetic Resonance Imaging): Makes detailed pictures of the inside of the body (such as the brain, joints, and heart) using powerful magnets and radio waves, instead of harmful X-ray.
  2. Magnetic therapy: Most individuals have magnet therapy where they apply magnets to alleviate pain.
  3. Extraction procedures: In selected instances, physicians apply a small magnet to extract metal splinters or particles, or from eyes or cuts.
  4. Medical sensors - Certain devices have small magnets to monitor the position of any body part (e.g. in certain hearing aid or in some prosthetics).

Exploring Magnets Class 6 Chapter 4 - Topics

Class 6 Science Chapter 4- Exploring Magnets teaches students the fascinating nature and play of the magnets. The chapter enables a learner to know about the working of the magnets, how these magnets interact with various materials, and what these magnets are utilized in our day-to-day life. It forms the basis of important scientific principles in a more casual way and in a form that is intuitive.

4.1 Magnetic and Non-magnetic Materials

This topic assists students to distinguish the materials that are and are not attracted to magnets. Such as iron, cobalt, nickel in materials can be held magnetized, whereas plastic, wood and glass are not magnetic.

4.2 Poles of Magnet

This part brings in the two poles of a magnet North Pole, and South Pole where the magnetic force is maximum. It also gives the interaction between these poles.

4.3 Finding Directions

Students learn how a suspended magnet aligns itself in the north-south direction. This property is used in magnetic compasses for navigation.

4.4 Attraction and Repulsion between Magnets

This section describes the interaction of magnets when they are brought near to one another. When like poles are brought into contact they repel (push); when unlike they attract (pull).

4.5 Fun with Magnets

The activities in this subject are easy and interesting, such as how to rub a magnet at home and create a magnet, how to see the magnetic effect in everyday life.

Approach to solve the Class 6 Science Chapter 4 Exploring magnets

The concepts that a student should have a clear picture on when approaching the solving of Class 6 Science Chapter 4 Exploring Magnets successfully include magnetic and non-magnetic materials, the idea of magnetic poles, attraction and repulsion and the practical applications of magnets. Conceptual clarity will be enhanced by slowly going through the textbook section by section and doing the recommended exercises. Learners are expected also to notice how magnets work in the real life to apply the theory to practice. When attempting questions, concentrate on writing uncomplicated and correct answers. Using NCERT solutions to tackle tricky or ambiguous questions can also assist you in revising and gaining confidence prior to exams.

NCERT Solutions for Class 6 Science Chapter Wise

NCERT Solutions of Class 6 Science answers precisely, chapter-wise to every question in the textbook according to the recent NCERT curriculum of 2025-26. The solutions will assist students in getting clear concepts of fundamental content as well as reinforcing their concepts on science subjects. These understandable solutions, which can be used to do the homework, revision or exam preparation, are a good learning mechanism to every Class 6 student.

NCERT Solutions for Class 6 - Subject-Wise Links

Also Check NCERT Books and NCERT Syllabus here

Frequently Asked Questions (FAQs)

Q: How to practice Science Class 6 Chapter 4 Question answer effectively?
A:

To practice Science Class 6 Chapter 4 Question answer, read the textbook carefully, revise the notes, and solve end-of-chapter questions along with extra exercises.

Q: What are the important points covered in Exploring Magnets Class 6 Notes?
A:

Exploring Magnets Class 6 Notes cover key concepts like magnetic poles, uses of magnets, and magnetic and non-magnetic materials in a simple and easy-to-understand format.

Q: How to get Class 6 Science Chapter 4 Exploring Magnets question answers?
A:

Class 6 Science Chapter 4 Exploring Magnets question answers are available on Careers360 website, school notes, and online resources with detailed explanations.

Q: What is meant by attraction and repulsion in magnets?
A:

Like poles of magnets repel each other, while unlike poles attract. For example, North-North repels, but North-South attracts.

Q: How can a magnet help in finding directions?
A:

A freely suspended magnet always points in the North-South direction. This property is used in magnetic compasses to find directions.
