From Pixels To Pictures: What Is The Math Behind Digital Image Processing?

In today's digital age, pictures are all around us. From social media platforms to advertising, images play a significant role in capturing our attention and conveying messages. But do you ever think about the science behind digital images? How do they get from a camera sensor to your computer screen or mobile phone? The answer lies in digital image processing, a field that uses mathematical algorithms and techniques to manipulate and enhance pictures.

Digital image processing has revolutionised the way we capture, store, and share pictures. Before the digital age, images were captured on film and had to be processed in a darkroom using chemical solutions. This process was time-consuming and expensive, and it was difficult to make changes or corrections once the image was captured. With digital cameras and image processing software, we can capture pictures instantaneously and make adjustments to them with ease.

But how exactly does digital image processing work? At its core, digital image processing involves the conversion of raw image data into a visual representation that can be viewed on a screen or printed out. This process involves a series of steps, including image acquisition, pre-processing, enhancement, and analysis. Each of these steps involves complex mathematical algorithms that manipulate the pixel data in the pictures.

Also read | Supply And Demand: A Mathematical Analysis Of Market Equilibrium

In this article, we will explore the maths behind digital image processing. We will start by looking at the basics of digital images, including colour spaces and image resolution. From there, we will delve into the mathematical algorithms used in image processing, including image filtering, edge detection, and image segmentation. We will also explore some of the applications of digital image processing, such as facial recognition and medical imaging.

Basics Of Digital Images

To understand digital image processing, we need first to understand what is a digital image and what is a fundamental component of a digital image.

Pixel

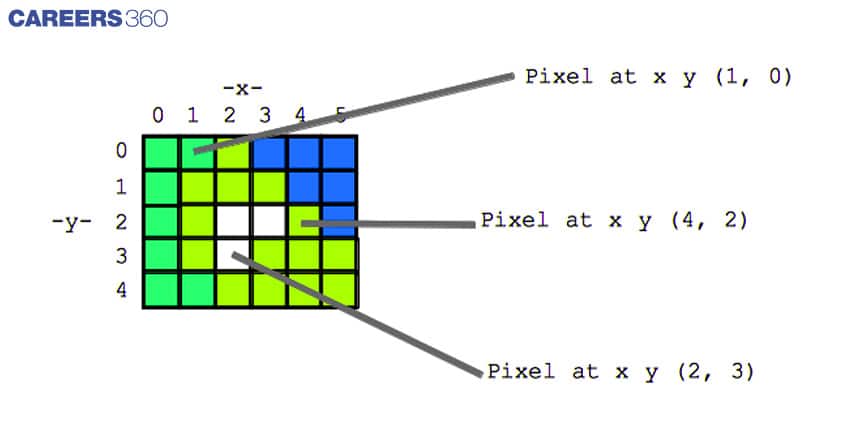

The screen of electronic devices such as computers and mobile phones can be divided into a single dot, as shown in the image below.

This single dot is called a pixel. The pixel is a fundamental component of a digital picture, that is typically square-shaped, but not always. It has a single colour value. When multiple pixels of different colours are arranged together, they create a digital image.

Also Read | Protect Financial Accounts With These Class 12 Algebra Concepts

Digital Image

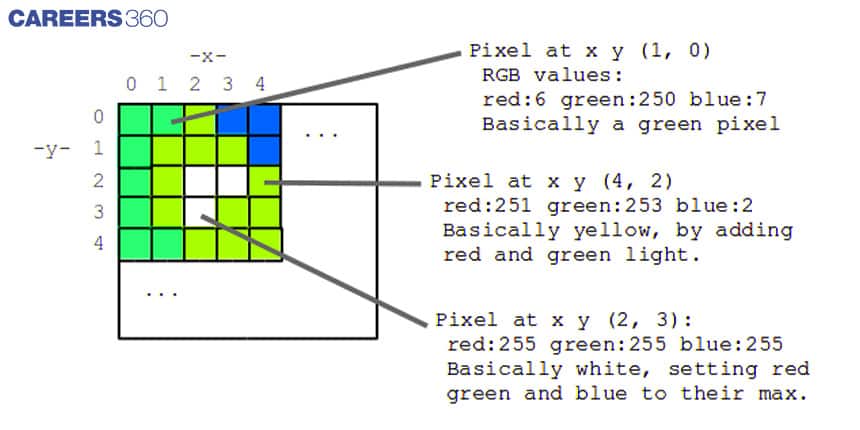

A digital image is a two-dimensional matrix of pixels. Each pixel has a colour value, which is usually represented using a colour space. The most common colour spaces used in digital image processing are RGB (Red, Green, Blue) and grayscale. In the RGB colour space, each pixel is represented by three values, which correspond to the intensity of red, green, and blue light. Grayscale images, on the other hand, only have one value per pixel, which corresponds to the brightness of the pixel.

Resolution

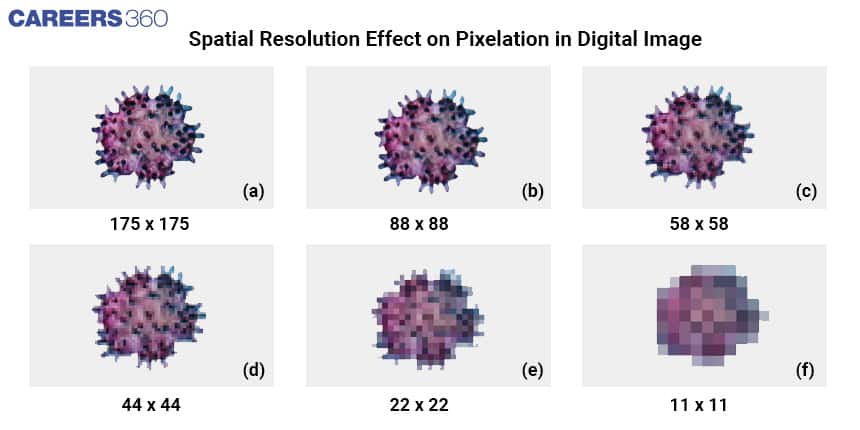

We can clearly see the difference between the images from image “a” to image “f”. Image “f” has a lower pixel size (11x11) and consequently lower detail, resulting in a blurry picture. In contrast, image “a” has a higher pixel size (175x175), leading to increased detail and a clear picture due to its higher resolution. The resolution refers to the number of pixels in an image. The more pixels a picture has, the higher its resolution, and the more detail it can capture. For example, a 1920x1080 pixel image (often referred to as Full HD) has a resolution of 2.1 million pixels, while a 4K image has a resolution of over 8 million pixels

Mathematical Algorithms In Image Processing

Now that we have a basic understanding of digital images, let's explore some of the mathematical algorithms used in image processing.

Image Filtering: This is the process of modifying a picture by applying a mathematical operation to each pixel. The most common type of image filter is a linear filter, which applies a weighted average to each pixel and its neighbours. This can be used to smooth out a picture, remove noise, or sharpen edges.

Edge Detection: Edge detection is the process of identifying boundaries in an image. This is achieved by looking for sudden changes in pixel intensity. The most common edge detection algorithm is the Canny edge detector, which uses a series of filters to identify edges and suppress noise.

Image Segmentation: Image segmentation is the process of dividing an image into regions based on some characteristic, such as colour or texture. This can be used to identify objects in a picture or to separate foreground and background. One common algorithm for image segmentation is the Watershed algorithm, which works by flooding regions of the image from local minima.

Applications Of Digital Image Processing

Digital image processing has many practical applications, ranging from facial recognition to medical imaging.

Facial recognition algorithms use image processing to detect and recognise faces in images or videos. This is achieved by first detecting the location of the face in the picture, and then using a machine learning algorithm to match the face to a database of known faces. Facial recognition technology is used in security systems, social media platforms, and even in unlocking smartphones.

Medical imaging is another field where digital image processing plays a critical role. Medical images, such as X-rays and MRI scans, can be processed to enhance contrast and remove noise, making it easier for doctors to identify abnormalities. Image segmentation algorithms can be used to identify tumours or other abnormal tissue in medical images, allowing for earlier detection and more effective treatment.
